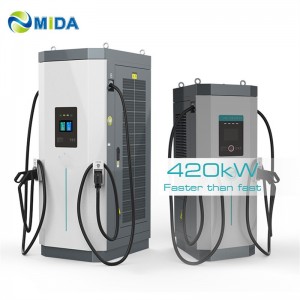

240kw 300kw 360kw 420kW Fast Charging Station Floor Standing DC Pile

Rate Power:150kW, 180kW, 200kW, 240kW, 300kW, 360kW, 420kW
Input Voltage:400V±15%
Input Voltage Type:TN-S(Three Phase Five Wire)
AC Grid Frequency:45-65Hz
Output Voltage:150V-1000V
Output Voltage Error:≤0.5％
Output Current Error:When Output current≥30A:≤±1％ When output current＜ 30A:≤±0.3A
Power Factor:≥0.99
Leakage current:≤10mA
Power Frequency Withstand Voltage:2500VAC

Product Detail

Item	Power	150KW	20KW
Input	Input Voltage	3-phase 400V ±15% AC
	Input Voltage Type	TN-S (Three Phase Five Wire)
	Working Frequency	45~65Hz
	Power Factor	≥0.99
	Efficiency	≥94%
Output	Rated Voltage	CHAdeMO 500Vdc; CCS 1000Vdc; GBT 1000Vdc
	Max. Output Current	CHAdeMO 125A;	CCS 200A; GBT 250A;
Interface	Display	8” LCD Touchscreen
	Language	Chinese, English, French, German, Spanish, Russian, etc.
	Payment	Mobile APP/RFID/POS
Communication	Network Connection	4G(GSM or CDMA)/Ethernet
	Communication Protocols	OCPP1.6J or OCPP2.0
Working Environment	Working Temperature	-30°C ~ +55°C
	Storage Temperature	-35°C ~ +55°C
	Operating Humidity	≤95% Non-Condensing
	Protection	IP54
	Acoustic Noise	<60dB
	Cooling Method	Forced Air-Cooling
Mechanical	Dimension(W x D x H)	700mm806mm1890mm
	No. of Charging Cable	Single	Dual
	Cable Length	5m or 7m
Regulation	Certificate	TUV CE/IEC61851-1/IEC61851-23/IEC61851-21-2
