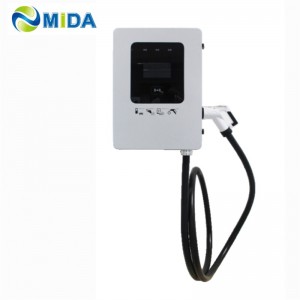

30kW 40kW Floor mounted or Wall Mounted DC Fast Charger Station

Short Description:

  • Model:MIDA-PD-30KW
  • Rated voltage:DC 400V
  • Input Rating:380Vac± 15%
  • Power Factor:>0.99 @ full load
  • TFT-LCD Touch Panel:4.3′ touch display
  • Certification:CE ROHS


Download as PDF

Product Detail

FAQ

Product Tags

AC Input 1. Input Rating:400Vac± 15%
2. AC Input Connection:3P+N+PE (Wye connection)
3.Max. Input Current:50A
4.Efficiency: 95%
DC Output 1. Output Voltage Range:50~500Vdc (CHAdeMo), 150~750Vdc (CCS), 48~450Vdc(GB/T)
2. Max.Output Power:20KW,30kW,40kw
3Max.Output Current:100A@500V,
User Interface 1. TFT-LCD Touch Panel:4.3′ touch display
2.Push Buttons:Emergency Stop
3. Interface:USB, RJ45
Packing 1.Dimension:630*230*632mm
2.Weight:35KGS
Environment 1. Operating Temperature: -20°C ~ +50°C, power derating from +50°C and above
2. Humidity: 5% ~ 90% RH, non-condensing
3.Altitude: 2000m
4.IP Level: IP23
Regulation 1.Regulation: IEC61851-1
2.Certification: CE,ROHS
3. Charging protocol: CHAdeMO 2.0/DIN 70121/ISO15118/IEC61851-23
