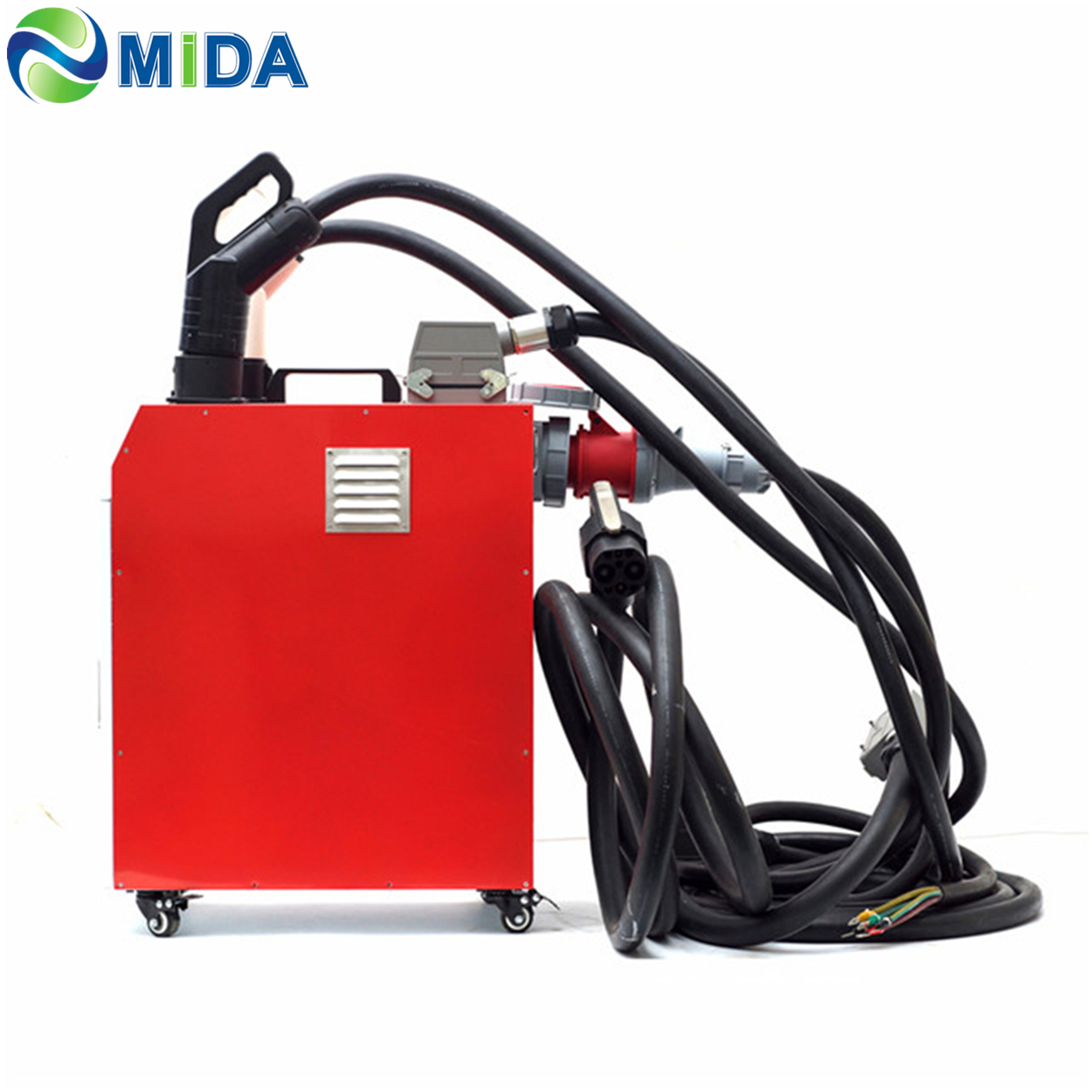

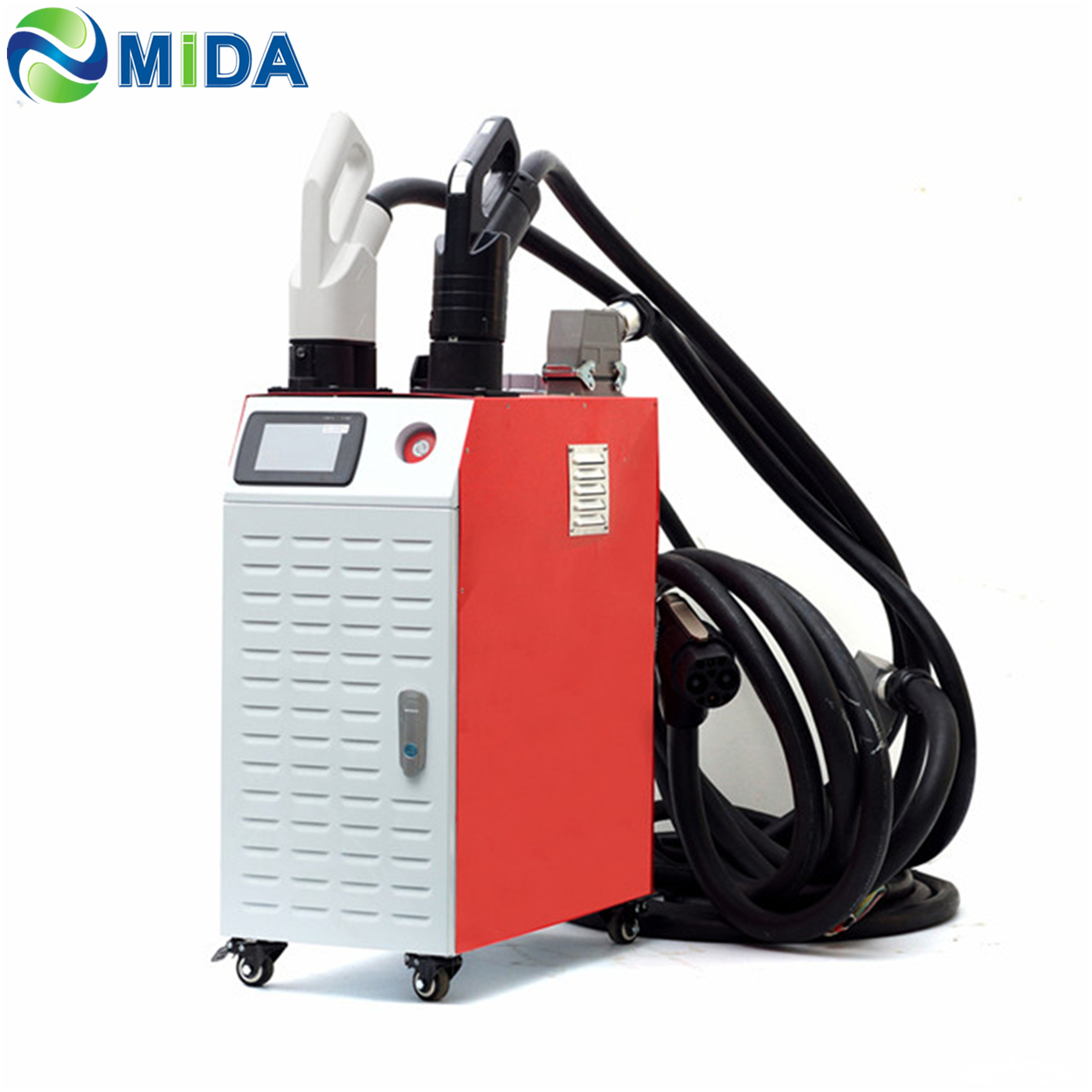

60KW portable mobile DC CHAdeMO CCS quick charger

Short Description:

Fast, mobile & flexible
Mobile charging with up to 200 Km/h!The CHR-30 quick-charger was developed for electric vehicleswith CHAdeMO or ccs Cormbo DC charging sockets and is designed for semi-mobile use.It is compatible with all popularindustrial sockets and can be used with CEE63 plug sockets.The charger is flexible in use thanks to its compact dimensions and is especially suitable for use with vehicle pools,in workshops or at motoring events.



Product Description

Specifications

     AC input      Plug type:CEE63,CEE32
     Output ,Current : 61.8kw,100A
     Voltage : 400VAC ±10%
     Power factor : >0.99 at >50%load
     Efficiency :97% three -phase
     Frequency : 50/60HZ±1%
         DC output      Plug type : CHADEMO/ GB/T /Tesla(need adapter) /CCS Type2
     Output ,Current : 52.8kw,132A max@400VDC
     Voltage range : 200-500 VDC,250-750VDC
General Specifications      Weight : 42kg(not include cable)
     Dimensions : 500*580*240mm(excluding trolley)
     Housing : IP23
     Cooling : Fan cooling temperature-dependent
     Operating temp :-60℃-+45℃
     Operation: touch display+emergency stop






Product Detail

FAQ

Product Tags

Warranty:
12 Months
Place of Origin:
China
Product name:
60KW portable DC EV charger
Certificate:
CE&ROHS
Input voltage:
380/400/415/400
Output voltage:
50-500 VDC
Output power:
60KW
Connector:
CHAdeMO CCS Combo
Usage:
EV charging
Packing:
Wooden
Standard:
GB,EN 61851;EN61000;JEVS;UL2202,2231-1,2231-2 ect
Packaging & Shipping

1pcs per carton ,
Sending by Express TNT , Fedex ,  DHL or By air , By sea by Customized

Express Freight cost Prepaid or Collect are both ok !.
