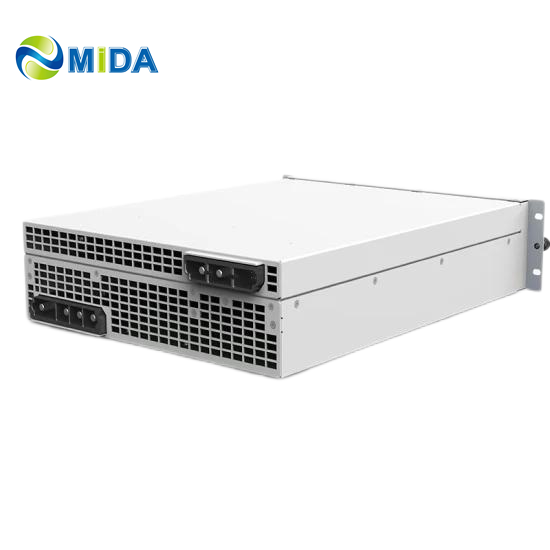

Bidirectional AC DC Power Converter BEG1K075G 20KW Power Module

Short Description:

  • Model No.:BEG1K075G
  • Input Voltage:260Vac~530Vac, 3-Phase+PE
  • Rated Output Power:20kW
  • Output Voltage Range:50~1000VDC
  • Peak Efficiency:≥ 96.5%
  • Power Factor:≥0.99
  • Current Regulation Accuracy:≤±1%
  • Communication Protocol:CAN


Product Detail

FAQ

Product Tags

20KW DC Charging Module (Two-input)
Model No. BEG1K075G
AC Input Input Rating 285Vac ~ 475Vac,three phase + Protective Earth
AC Input Connection 3L + PE
Input Frequency 50/60±5Hz
Input Power Factor ≥0.99
Input Overvoltage Protection 490±10Vac
Input Undervoltage Protection 270±10Vac
DC Output Rated Output Power 20kW
Output Voltage Range 300Vdc ~ 850Vdc
Output Current Range 0.5-67A
Output Constant Power Range When output voltage is 300-1000Vdc, constant 20kW will output
Peak Efficiency ≥ 96%
Soft Start Time 3-8s
Short Circuit Protection Self-rollback protection
Voltage Regulation Accuracy ≤±0.5%
THD ≤5%
Current Regulation Accuracy ≤±1%
Current Sharing Imbalance ≤±5%
Operation
Environment
Operating Temperature (°C) -40˚C ~ +75˚C, derating from 55˚C
Humidity (%) ≤95% RH, non-condensing
Altitude (m) ≤2000m, derating above 2000m
Cooling method Fan cooling
Mechanical Standby Power Consumption <10W
Communication Protocol CAN
Address Setting Digital screen display, keys operation
Module Dimension 460*218*84mm (L*W*H)
Weight (kg) ≤ 13Kg
Protection Input Protection OVP, OCP, OPP, OTP, UVP, Surge protection
Output Protection SCP, OVP, OCP, OTP, UVP
Electrical Insulation Insulated DC output and AC input
MTBF 500 000 hours
Regulation Certificate UL2202, IEC61851-1, IEC61851-23, IEC61851-21-2 Class B
Safety CE, TUV
