Electric Car Home Use Portable Wallbox 16A EV Charger

Short Description:

Electrical Performance
Model: MIDA-EVSE-PE16S
Rated Current: 8A 10A 13A 16Amp (Adjustable)
Operating Voltage: 110V~250V AC
Insulation Resisitance:>1000MΩ
Therminal Temperature rise:<50K
Withstand Voltage:2000V

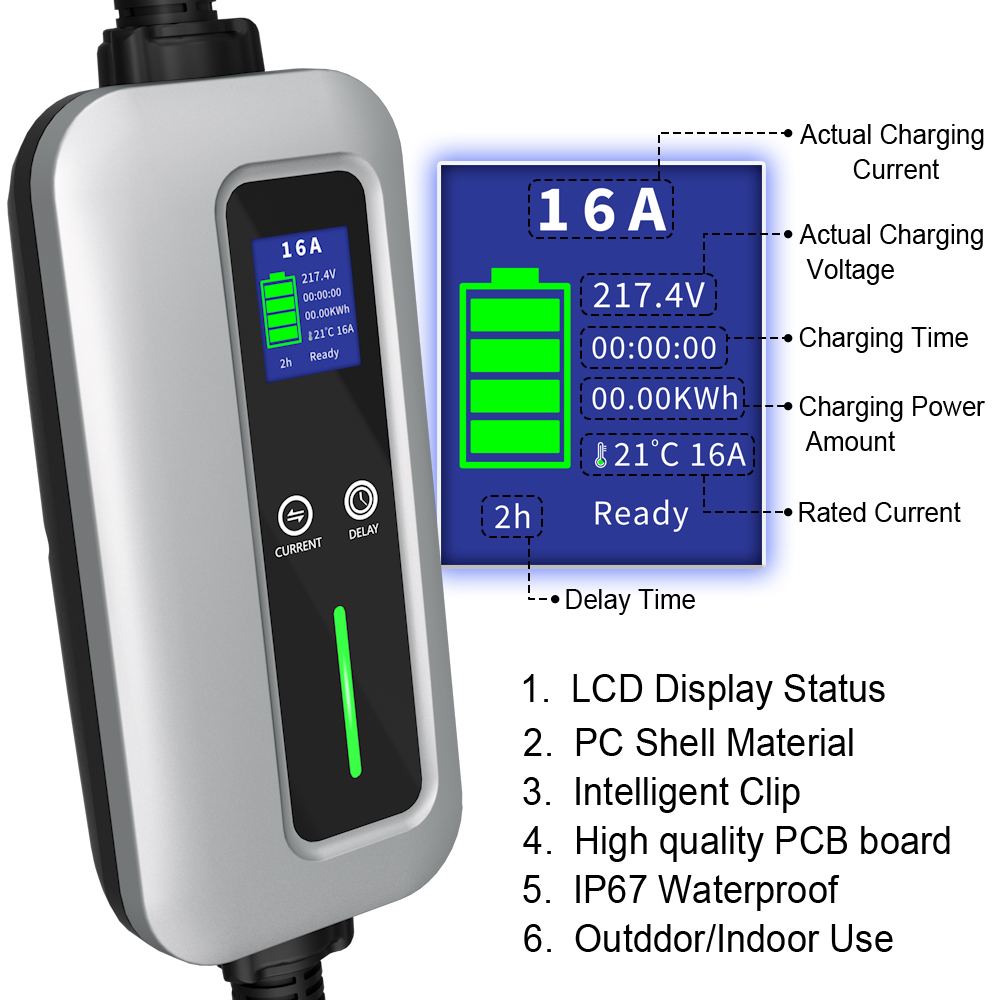

Intelligent waterproof portable charger with European Schuko plug. The charging unit is characterised by a display that informs the user about the temperature, voltage and current in the network. Switchable 6A / 8A / 10A / 13A / 16A charging power. Charge much faster than conventional chargers. Technical: – Input: 230 V single-phase – Output: 230 V single-phase – Output current: max. 16A – RCD with automatic reset. If you are not sure if you need a Type 1 or Type 2 model, please read the vehicle page on the details page or contact us. Technical: – Input: 230 V single-phase – Output: 230 V single-phase – Output current: max. 16A – Type 2 (IEC 62196-2) plug/Mode 2 compliant – IP 65 for indoor and outdoor use – Permissible operating temperature: -25°C to +50°C – Total length: approx. 5 m. Weight: approx. 2 kg. Material: metal and plastic. With Schuko plug to plug type 1. Safety: Monitoring the charging voltage and current during charging. Surge protection. Undervoltage protection. Overcharge protection. Overheating protection

Send email to us Download as PDF

Product Detail

FAQ

Product Tags

Packaging & Delivery

Selling Units:: Single item

Single package size:: 35X35X11 cm

Single gross weight:: 5.000 kg

Package Type:

1.Selling Units:Single iteam
2.Single packing size:35cm*35cm*11cm
3.Single gross weight:2.6kg
4.Package Type:Packing in corrugated cartons
5.EV Plug, Power Plug and control box should be bubble wrapped separately , then overall packed by bubble bag.
6.Storage bag packed, then packed in standard exporting carton.

Lead Time:

Quantity(Pieces)	1 - 50	51 - 100	>100
Est. Time(days)	15	30	To be negotiated

name	16A ev charger
Socket Type	IEC 62196
Rated Voltage	220-250V AC
LED Status Indication	14.1 ounces
Certificate	CE TUV FCC
Degree of Protection	IP65
Operating Temperature	-25°C ~ +50°C
Cable length	5 meters
Max Output Power	3.6KW
Start method	plug and charge

How to use ev charging

1. Firstly, the most important step is to make sure the charger is well connected to the power.
2. Secondly, use the integrated Type 2 charging cable plug to connect the charging station with your electric vehicle.
3. Once the charging cable has clicked in place you are ready to start the charge.
4. Also, there is the option to activate the charging station .How to stop the charging
1. Firstly, disconnect the Type 2 plug from the electric vehicle’s side when you finish charging.
2. If you wish to manually stop the charging you can do this by pressing the Emergency Button (the red button on the side of the
charger) in case of an emergency.
How to check the charging status
1. You can monitor the charging process in real time from the LED screen display.
