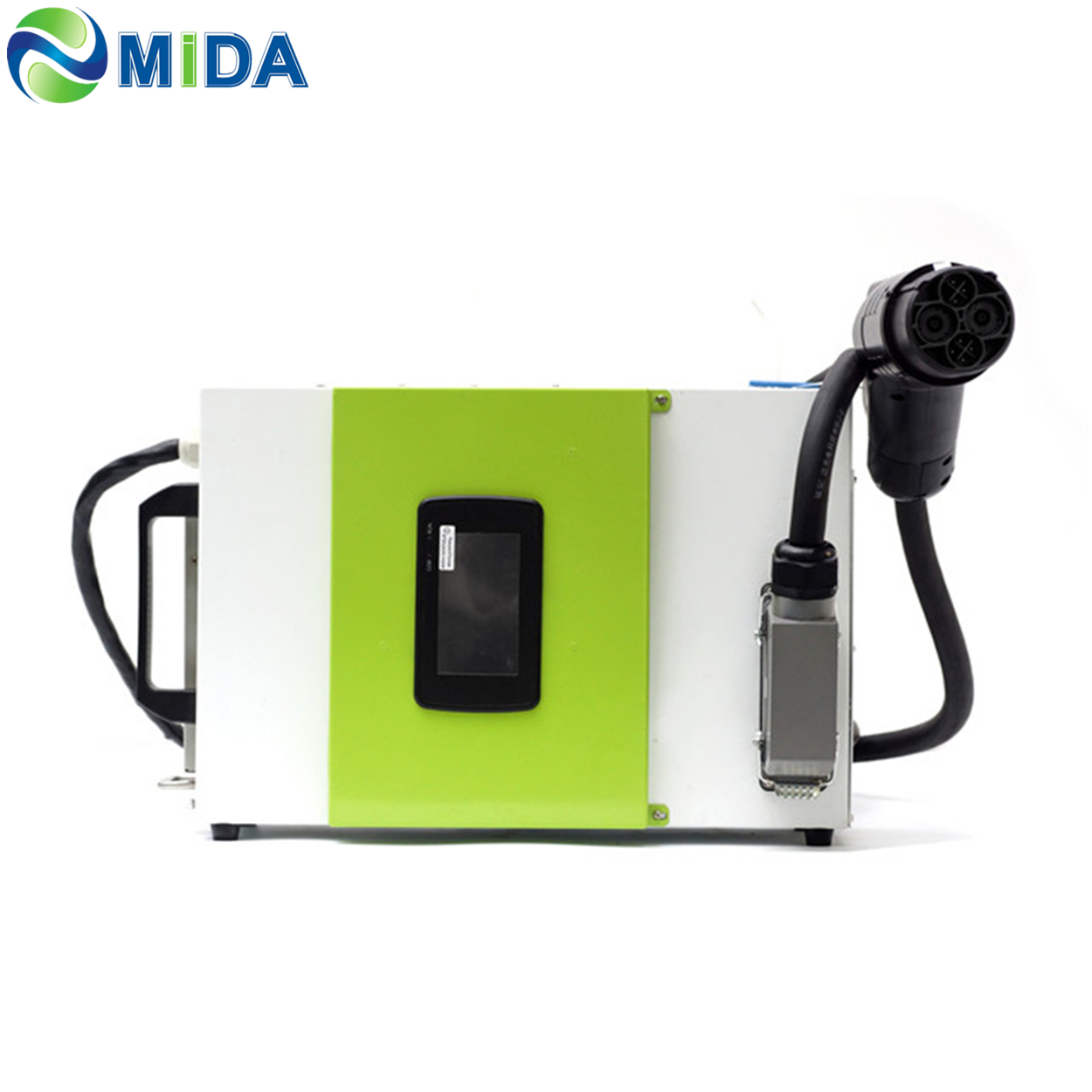

Mobile charging with up to 200 Km/h!The CHR-30 quick-charger was developed for electric vehicleswith CHAdeMO or ccs Cormbo DC charging sockets and is designed for semi-mobile use.It is compatible with all popularindustrial sockets and can be used with CEE63 plug sockets.The charger is flexible in use thanks to its compact dimensions and is especially suitable for use with vehicle pools,in

Function and Features for 15KW portable EV charger

1)The communication board has the high-speed CAN net work can communicate with BMS of the electric car and complete the charger charge control.It used to judge the power battery type of the electric car and obtains the systematic parameter and also obtains the status data of the power battery’s voltage,current and temperature in the course of charging and before charging.

2)4.3 inches LCD touch screen display with indicator function,which can real-time display the remaining battery power,charging voltage charging

Working condition of 15kw portable dc charger:

1) Prevent the rain, water, avoid direct sunlight ,away from the sources of charger,such us fire
source, combustible gas,rain,snow smoke,sand-dust, ect.
2) Operating temperature:-20℃~45℃
3) Operating humidity:5%~95%
4) Operating altitude:<=2000m

Specifications

specification parameter
Mode	CHR-15
Output voltage	50VDC~500VDC
Output current	33A
Input voltage	380V±15%
Input frequency	50Hz±5%
AP	12VDC
Frequency	≤0.1%
Output current accuracy	≤0.1%
Ripple voltage	≤±0.2%(MAX)
Efficiency	≥96%(Rated)
Power factor	≥0.99
Input current harmonic	≤5%
Current-unbalance	≤±3%
Protection	IP23
Communication	GB,CHAdeMO,CCS,Tesla
Noise	≤65dB
Operation Temperature	-20℃- 45℃
Working Relative Humidity	RH≤95%
Insulation Resistance	AC-GND ≥10MΩ DC-GND ≥10MΩ Input to output ≥10MΩ
Dielectric Voltage withstand	AC-GND 2500VAC,time:1min,Leakage Current≤10mA DC-GND 2500VAC,time:1min,Leakage Current≤10mA Input to output 2500VAC,time:1min,Leakage Current≤10mA
Dimension	450mm*300mm*150mm
Weight	15kg
