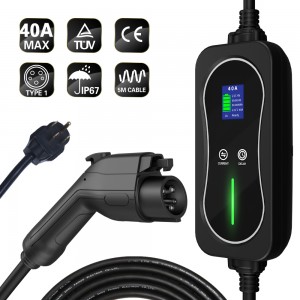

Mode 2 Portable EV Charger Type 1 32A 40A J1772 EV Connector NEMA 14-50 for Electric Car Charger Station

Short Description:

Electrical Performance

Rated current: 16A,24A ,32A,40A

Operating voltage: 110V~250V AC

Insulation resisitance:>1000MΩ
Therminal temperature rise:<50K
Withstand voltage:2000V
Working temperature: -30°C ~+50°C
Contact impedance: 0.5m Max


Product Detail

FAQ

Product Tags



Item Mode 2 EV Charger Cable (  Adjustable or Fixed Current )
Product Model MD-PA-40C
Rated Current 16A / 24A / 32A / 40A
(  Adjustable or Fixed )
Operation Voltage AC 110V~250 V
Rate Frequency  50Hz / 60Hz
Leakage Protection Type A RCD or Type A RCD+DC 6mA  ( Optional )
Withstand Voltage 2000V
Contact Resistance 0.5mΩ Max
Shell Material PC Material
Flame Retardant Grade UL94 V-0
Operating Temperature -25°C ~ +55°C
Storage Temperature -40°C ~ +80°C
Waterproof Protection IP67 ( Outdoor or Indoor)
EV Control Box Size 220mm (L) X 100mm (W) X 56mm (H)
LCD Display Temperature, Charging Time, Actual Current, Actual Voltage, Actual Charging Power
 Delay Time
New Function Delayed Charging + Current Switching
Standard IEC 62752  ,  IEC 61851
Certification TUV,UL ,CE Approved
Protection 1.Leakage Current Protection                       2. Over Current Protection
3.Over Voltage Protection                             4. Under Voltage Protection
5.Over Temperature Protection                     6. Over Temperature Protection
7.Short Circuit Protection                                8. Surge Protection
9.Overload Protection (self-checking recover)
